Hard Candy Production Line

Hard candy production line can process sandwich hard candy, irregular shaped hard candy, flat hard candy, threaded flower hard candy. Cylindrical hard candy, spherical hard candy, milk candy, candy cane, nougat, etc

1.Automatic Depositing Hard Candy Production Line

  Hard candy depositing production line is mainly used for hard candy making. It integrates mechanical, electric, compressed air, and automatic control.  feature is its high capacity, high quality, various products design, easy   operation, reliable structure design, and high automatic grade. It can not only produce transparent hard candy, double colors candy, double layers with double flavors candy, center filling candy, but also whirl designed product with multiple colors and tastes.

★The sanitary structure designed and manufactured meets GMP requirements.

★PLC /programmable process control available for candy vacuum cooking temperature and time, depositing temperature and depositing speed.

★LED touch screen displays process flow and realizes easy operation.

★Rationed filling and mixing of essence, pigment and acid solution can be completed on the line.

★The conveying chain, cooling system and double de-molding device guarantee the de-molding of candy.

★Different shaped candies can be made via change-over of the

★Optional choice of extra chocolate paste injection system for making chocolate-central filled candies.

★The standard production capacity is from 150kg/h to 1200kg/h;

★Optional (mass) flowing controlled by Frequency inverters;

★In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;

★butterscotch" "sugar free" hard candies etc. can be made.

★Moulds can be made according to the candy samples provided by the customer

Hard candy depositing production line process flow

Raw material dissolving^Transporting->Storage->Dosing —Preheating — Micro-film cooking Discharging -> Mixing with flavor and color -> Depositing -> Cooling — De moulding — Conveying-> Packing

Main machine of depositing hard candy production line

Continuous vacuum cooker

   Main components: syrup pump, heater, syrup inlet, secondary steam discharge system, needle valve, vacuum steam chamber, discharge control system, rotary pot, vacuum system.

The jacketed cooking kettle is used to dissolve and cook ingredients such as glucose, granulated sugar, and water. It uses electric heating and features a large heating area, heating uniformity, and easy to control the temperature. This equipment improves product quality and shortens the processing time.

depositing die forming machine.

Main components: conveyor belt, model plate, sugar nozzle, sugar pump, storage tank, cooling device.

The depositing machine uses PLC to control the parameters such as temperature and depositing speed. These parameters are easy to read and set on the touch screen, while the syrup flow is precisely controlled via a frequency control system to ensure a stable sugar paste quality.

depositing mold molding can produce hard candy, do gummy candy and gummy candy, its wide range of adaptation, the need for roughly the same equipment. When the boiled sugar paste is still in the flow state during the depositing mold molding, the liquid sugar paste is quantitatively injected into the continuous running model plate, and then it is rapidly cooled and shaped, and finally separated from the model plate, and then sent to the packaging machine with the conveyor belt for packaging.

Working principle: The role of the sugar pouring pump is to push the sugar paste into the sugar filling mouth, which is made of two cylinders set, the outer cylinder is a fixed cylinder, there is a tank on the side and the storage tank through, and the hole at the bottom is connected with the sugar filling mouth. The inner cylinder is a opening and closing cylinder, and there is a connecting handle in the middle of the inner and outer circumference of the cylinder and a lever that swings from side to side. There is a small hole on the side and at the bottom of the cylinder. When swinging, the small hole at the bottom is closed with the small hole at the bottom of the outer cylinder, and the small hole on the side is connected with the hole of the storage tank, and the small hole on the bottom is connected with the hole on the side of the outer cylinder. There is a piston in the opening and closing cylinder, and when the piston moves up and down, the air can be inhaled, and the Jiang sugar paste is pressed to the sugar mouth. The piston moving distance determines the amount of sugar paste discharge. The piston moving distance can be adjusted according to the size of the sugar block. At the bottom of each pouring pump is a sugar nozzle, which equalizes the number of sugar models.

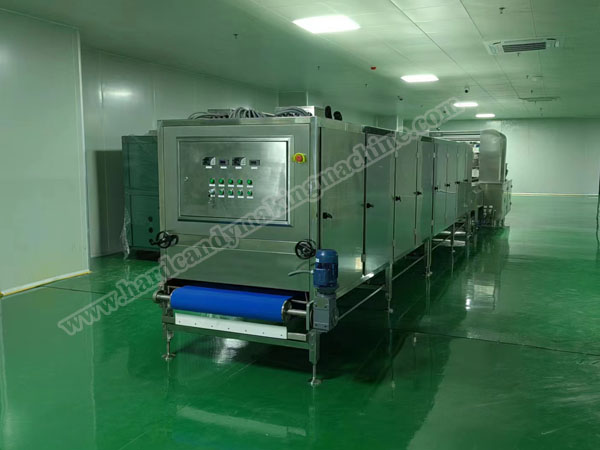

Candy Cooling Tunnel

Power :25kw-50kw(depends cooling unit)

Voltage :380,50hz

Cooling time :8-15min

Water consumption :4m3/h

Running condition(temperature) :5-35℃

Running condition(humidity) :30%-60%

Size(L*W*H) :7M*1.32M*2.61M

Weight :3000kgs

candy cooling tunnel is designed to match the high production of candy forming line. This equipment provides rapid cooling for large volumes of formed candy with optimum distribution of the candy on the cooling line. Through the cooling unit and cycle transport system, the product won't be cracking, deformation, lapping or conglutination on the cooling line. It is optimum equipment of cooling large volume of candy.

The model of the hard candy production line

Model:ZY1200-hardy candy production line

Capacity:1200kg/h

Candy weight:According to the size of candy

Depositing Speed:55-65n/min

Steam requirement:650kg/h,0.5-0.8MPa

Compressed air requirement:0.45m³/min,0.4-0.6MPa

Working condition： Temperature 20-25°C；Humidity 45-55%

Electric power needed:48kw/380v

Total Length:22m

Weight of machine:7500kg

Model:ZY600-hardy candy production line

Capacity:600kg/h

Candy weight:According to the size of candy

Depositing Speed:55-65n/min

Steam requirement:500kg/h,0.5-0.8MPa

Compressed air requirement:0.3m³/min,0.4-0.6MPa

Working condition： Temperature 20-25°C；Humidity 45-55%

Electric power needed:40kw/380v

Total Length:20m

Weight of machine:5000kg

Model:ZY450-hardy candy production line

Capacity:450kg/h

Candy weight:According to the size of candy

Depositing Speed:55-65n/min

Steam requirement:400kg/h,0.5-0.8MPa

Compressed air requirement:0.25m³/min,0.4-0.6MPa

Working condition： Temperature 20-25°C；Humidity 45-55%

Electric power needed:34kw/380v

Total Length:17m

Weight of machine:4500kg

Model:ZY300-hardy candy production line

Capacity:300kg/h

Candy weight:According to the size of candy

Depositing Speed:55-65n/min

Steam requirement:300kg/h,0.5-0.8MPa

Compressed air requirement:0.2m³/min,0.4-0.6MPa

Working condition： Temperature 20-25°C；Humidity 45-55%

Electric power needed:27kw/380v

Total Length:17m

Weight of machine:4000kg

Model:ZY150-hardy candy production line

Capacity:150kg/h

Candy weight:According to the size of candy

Depositing Speed:55-65n/min

Steam requirement:250kg/h,0.5-0.8MPa

Compressed air requirement:0.2m³/min,0.4-0.6MPa

Working condition： Temperature 20-25°C；Humidity 45-55%

Electric power needed:18kw/380v

Total Length:15m

Weight of machine:3500kg
